Oval Wood Cook Stove  wood stove made in USA

Oval Wood Cook Stove

Model: 1903

Oval with Reservoir


Specifications:
Colors Black, Ivory and White

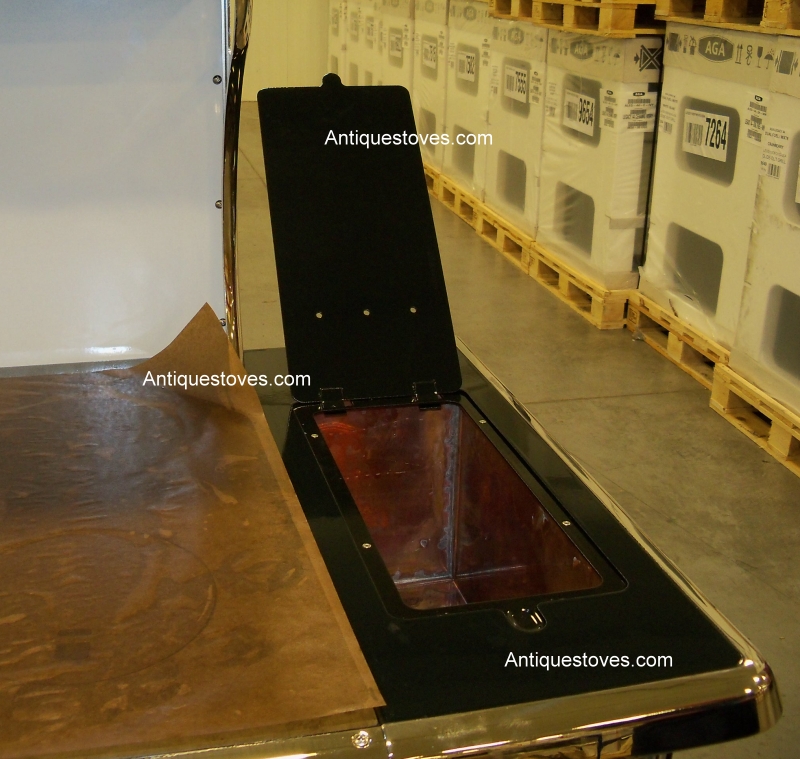

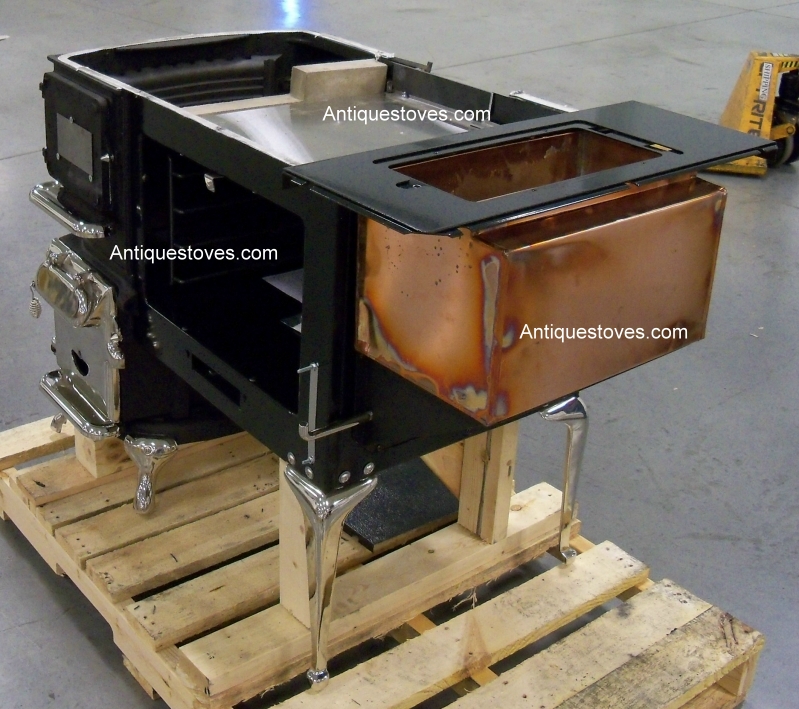

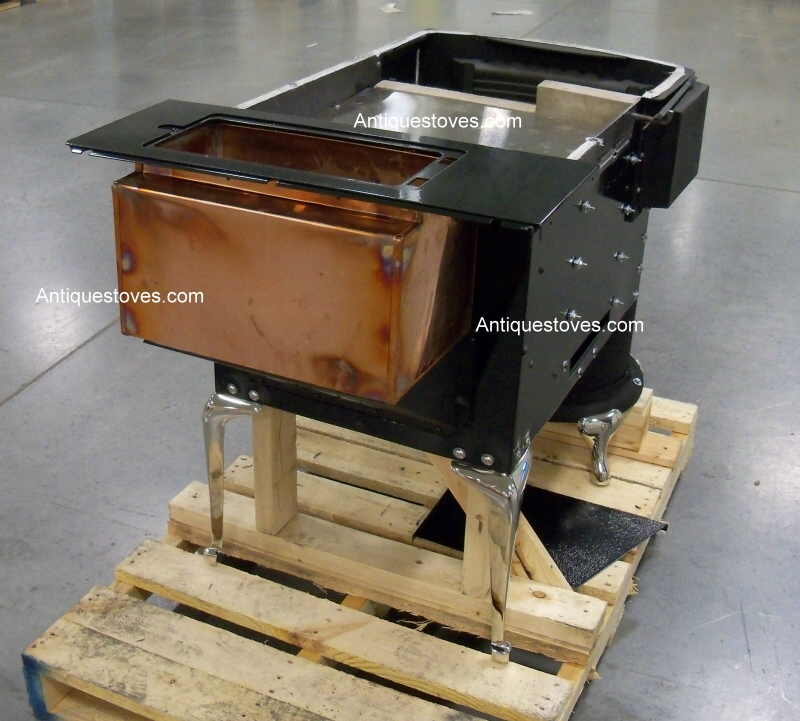

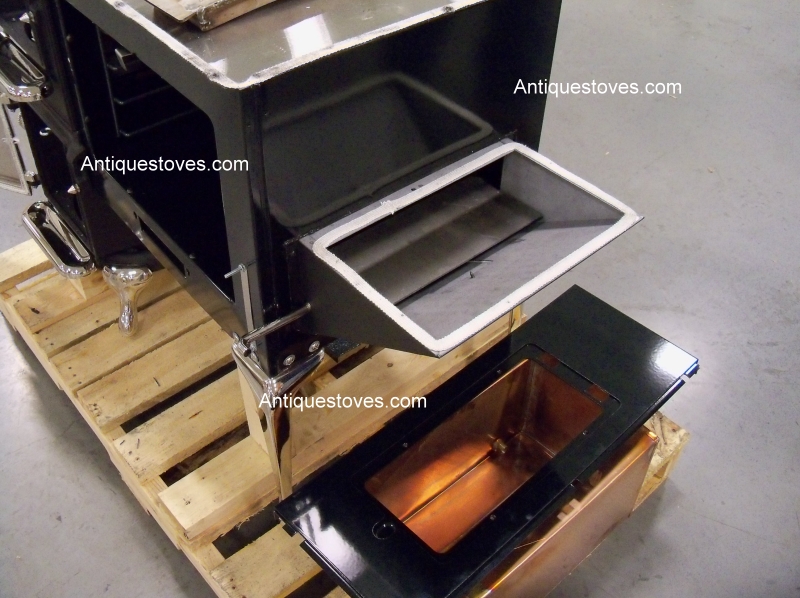

Features 5 gallon copper water reservoir with spigot
Finishes Enameled with nickel trim
Dimensions (WxDxH)

47 1/2" x 35" x 62"
Accessories

Fresh air kit, water jacket, heat shield and coal grate package.
Oven Size

2.4 cu. ft.
Heating Capacity

50,000 BTU/hr heat output - 1,200 to 1,800 sq. ft.
Cooking Surface Dimensions 35 1/4" x 25 3/4"
Warranty All components have a 1 year warranty in parts & labor with the exception of firebox parts, gaskets & over firing. Defects in painted or porcelain enamel finish or plated surface have a 90 days warranty in parts & labor.
The Heartland Oval is exempt from EPA regulations and is legal for sale in most of the USA. However, it is not legal for sale in the state of Washington.
Heartland Oval Wood Cook Stove Specifications:

Heat Output: 50,000 btu\hr
Oven Size: 17-7/8" Wide x 11-1/2" Tall x 19-7/8" Deep (2.4 cu.ft.)

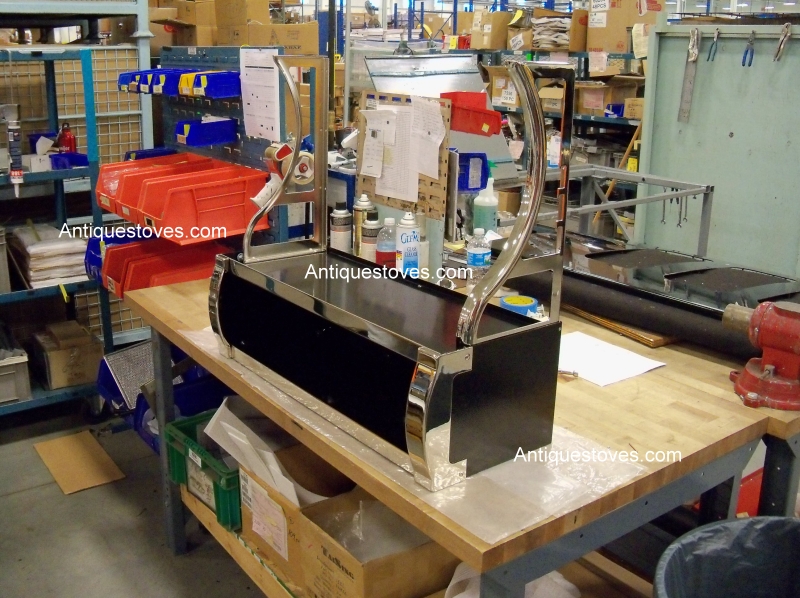

Warming Oven Size: 31" Wide x 8" Tall x 10-1/2" Deep
Firebox Size: 9" Wide x 11" Tall x 20" Deep (Front-to-Rear)
Heating Capacity: 50,000 BTU/hr heat output - 1,200 to 1,800 sq. ft.
Weight: 610 lbs. (640 lbs. with reservoir)

ground cast iron cooktop and 20 lb. turkey-sized oven

 Heartland Oval wood cookstove

horizontal rule

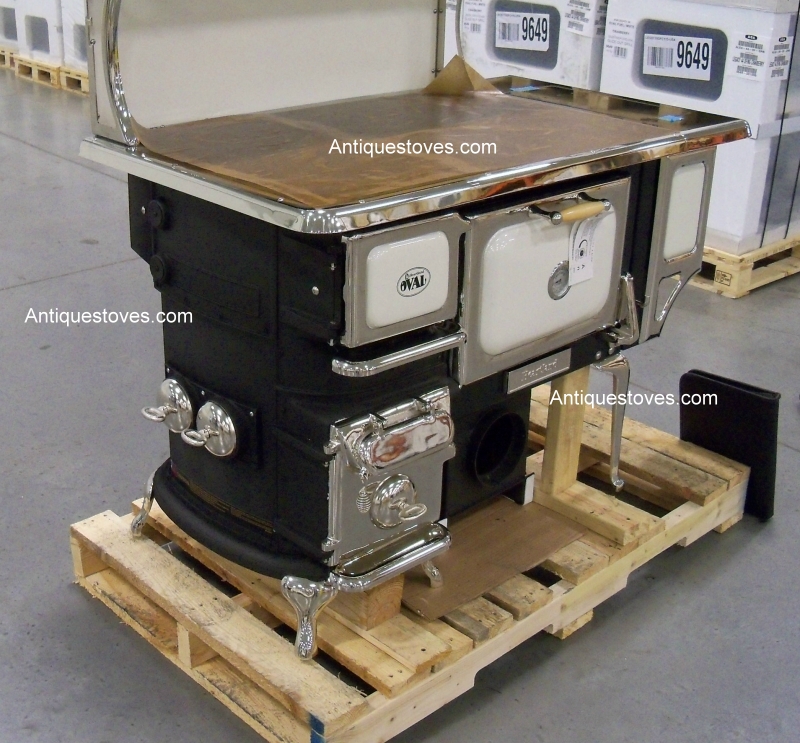

Oval  Wood Cook Stove 1903

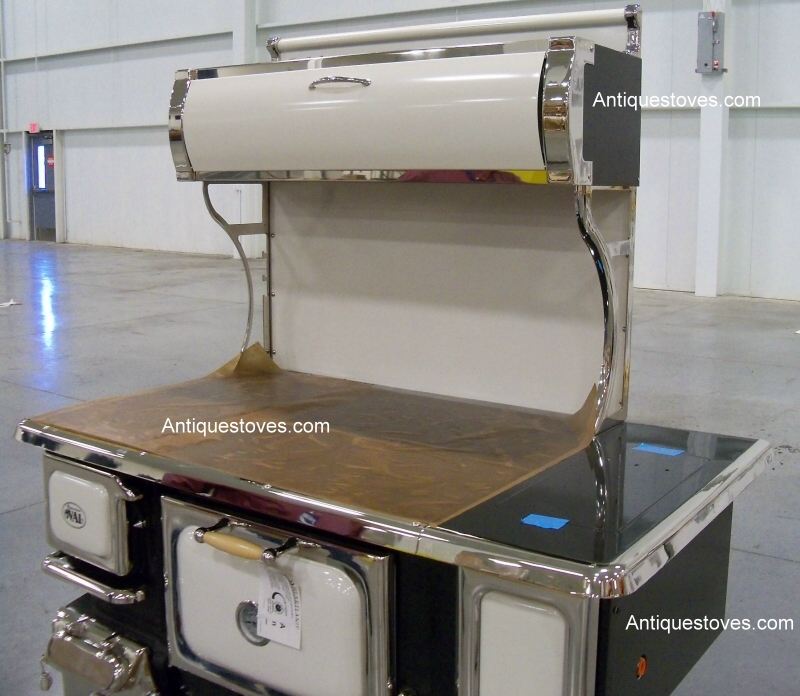

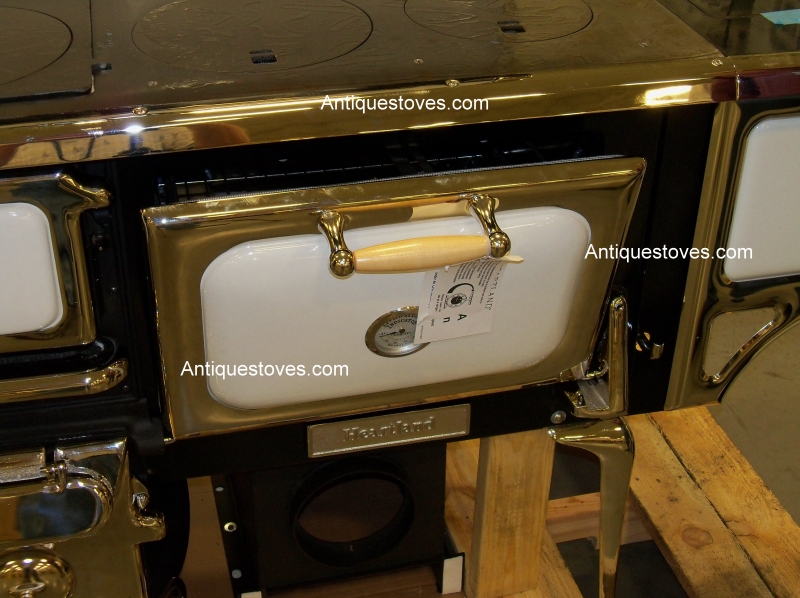

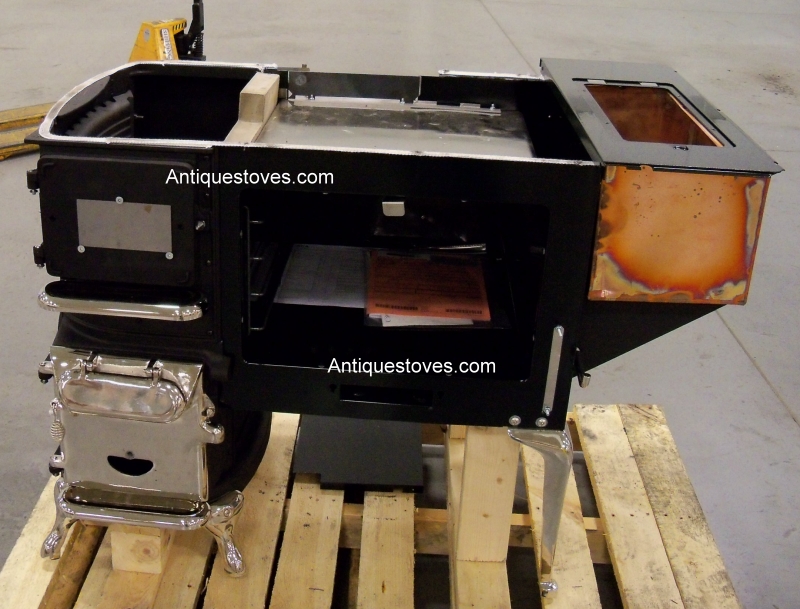

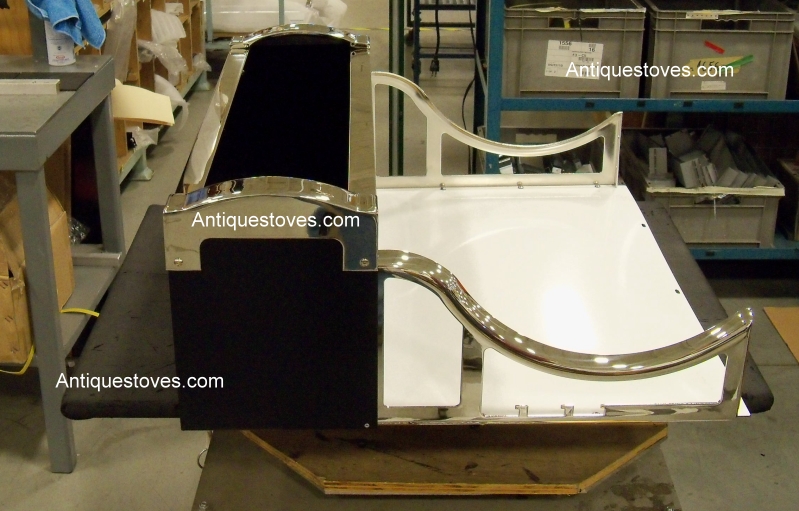

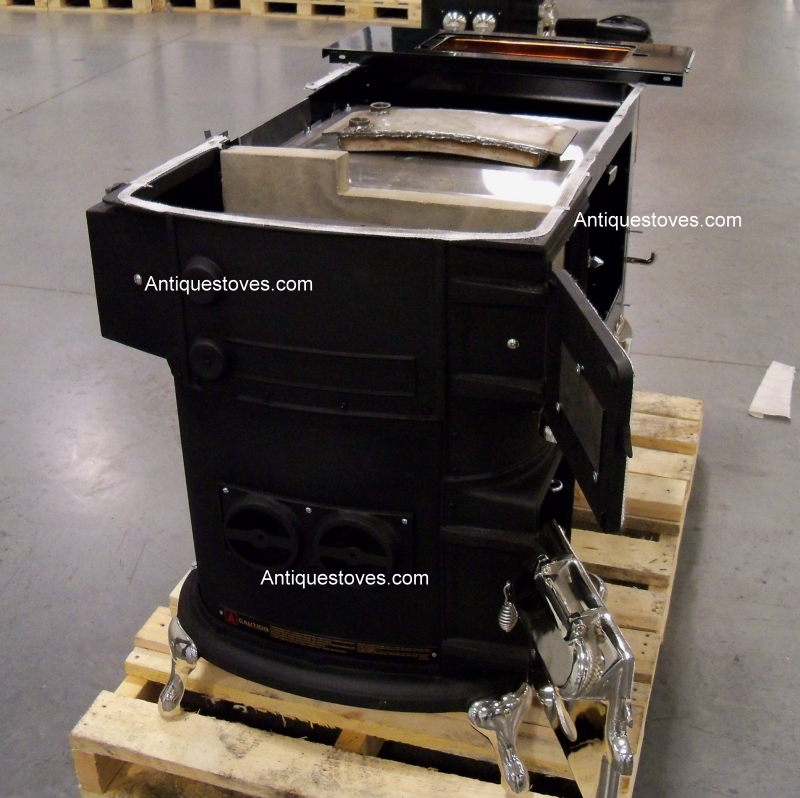

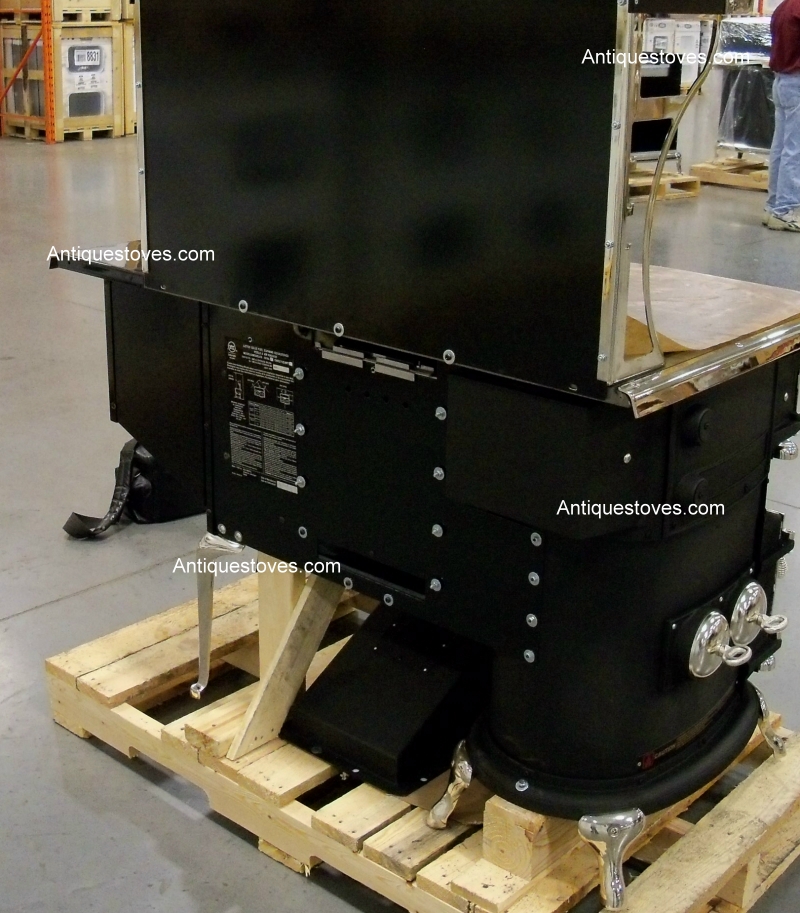

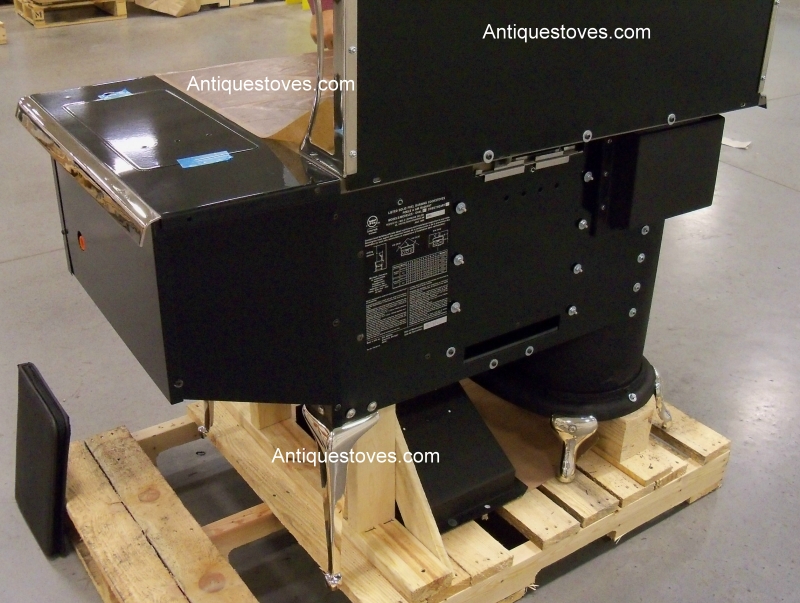

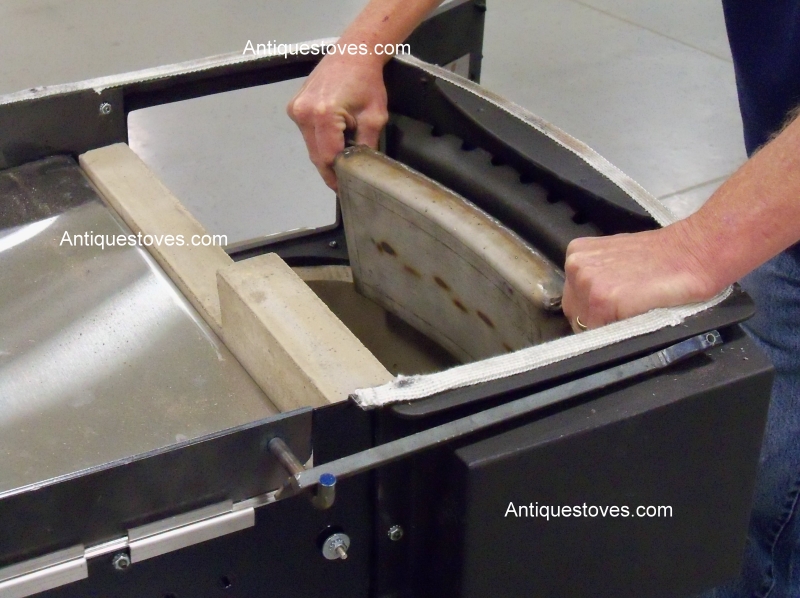

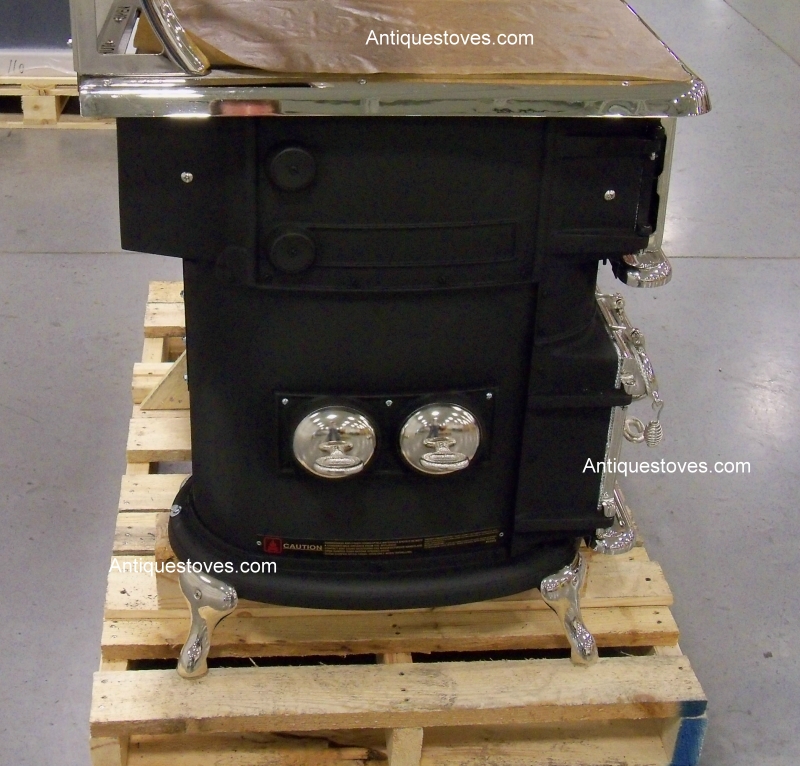

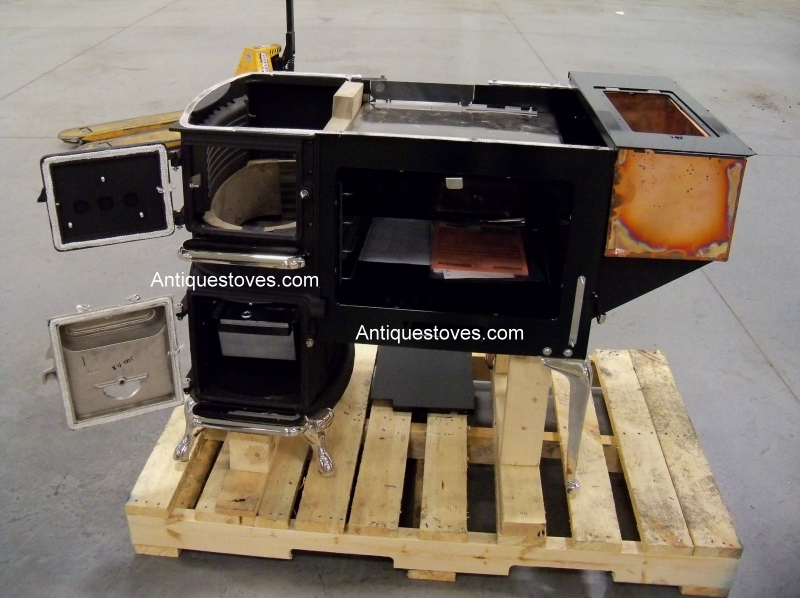

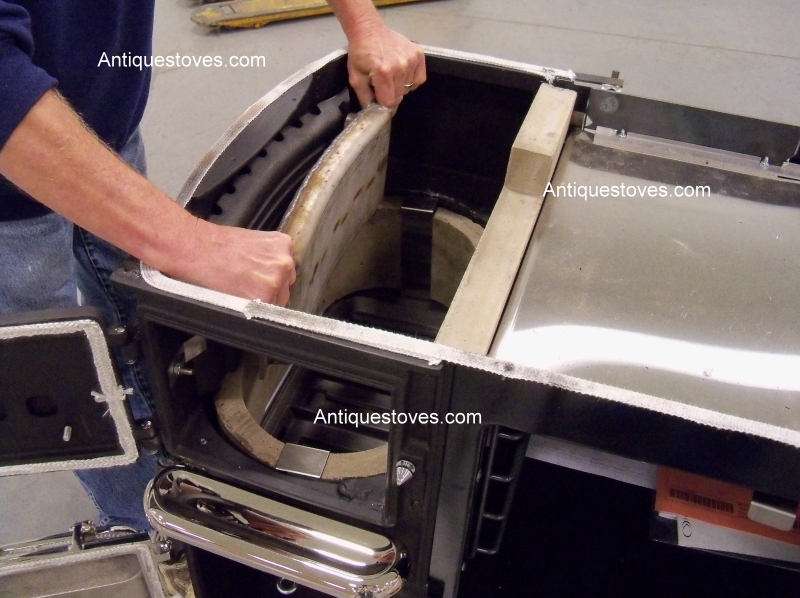

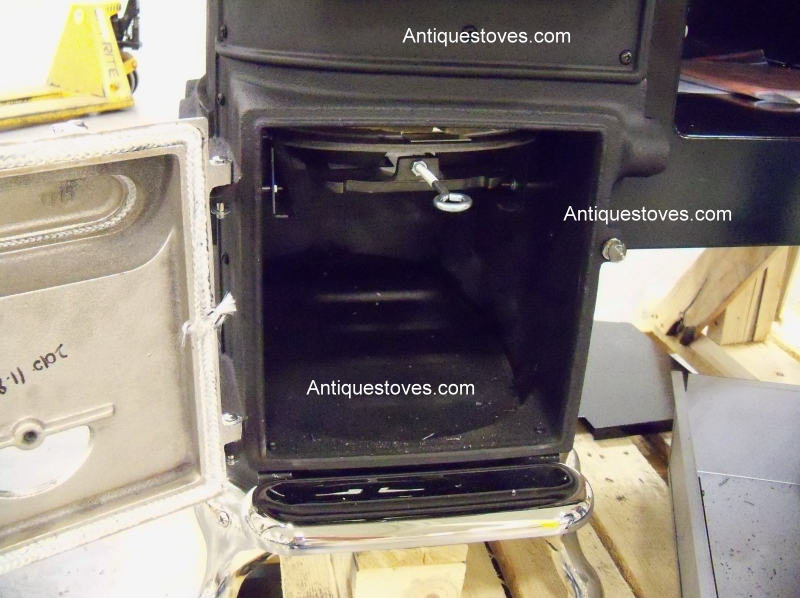

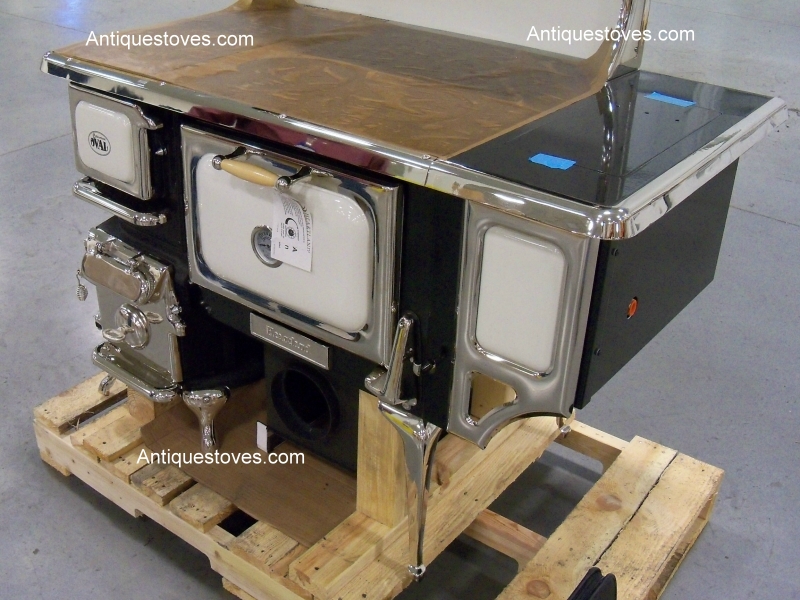

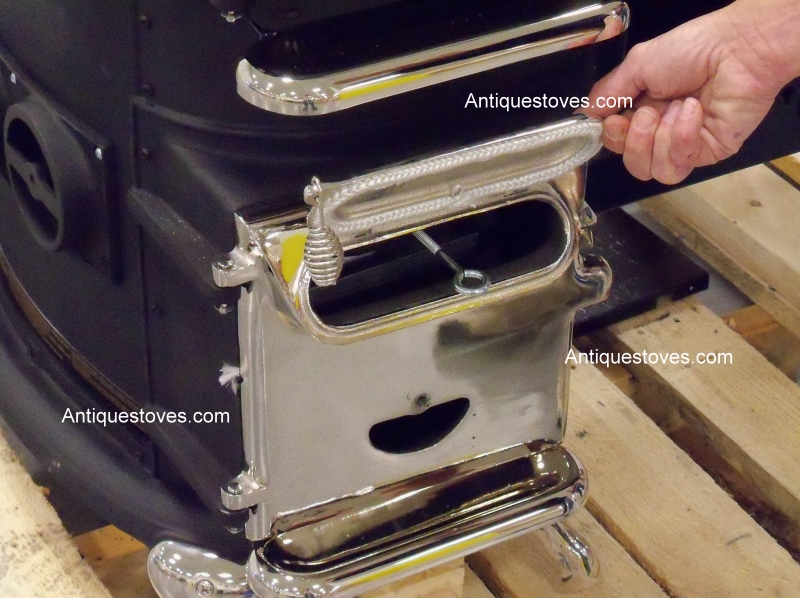

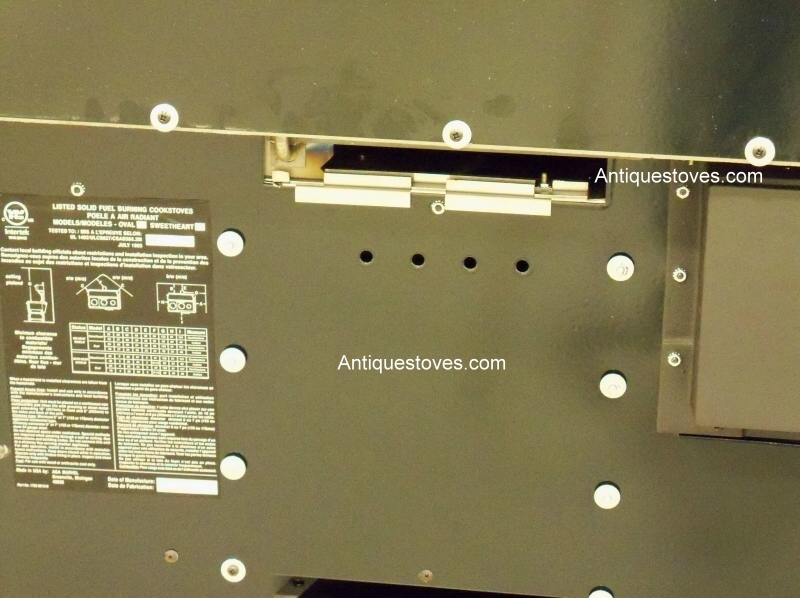

 Detail photo's

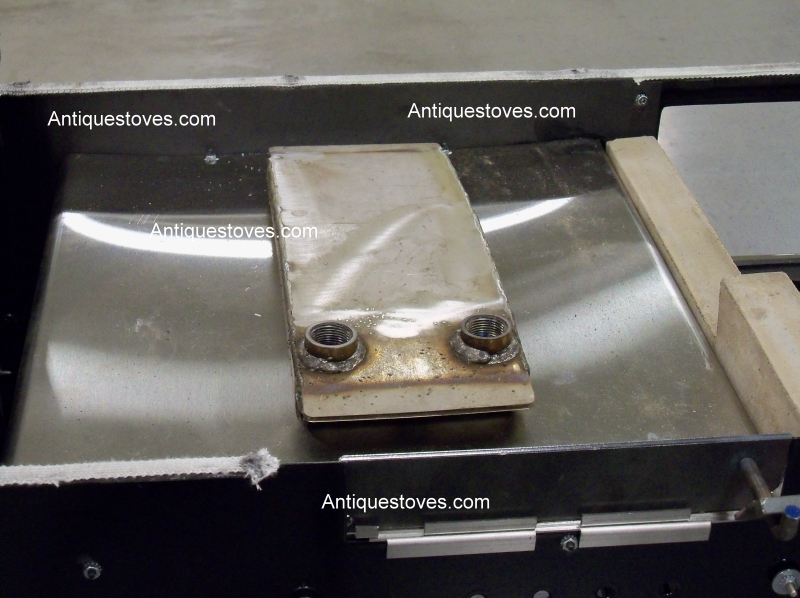

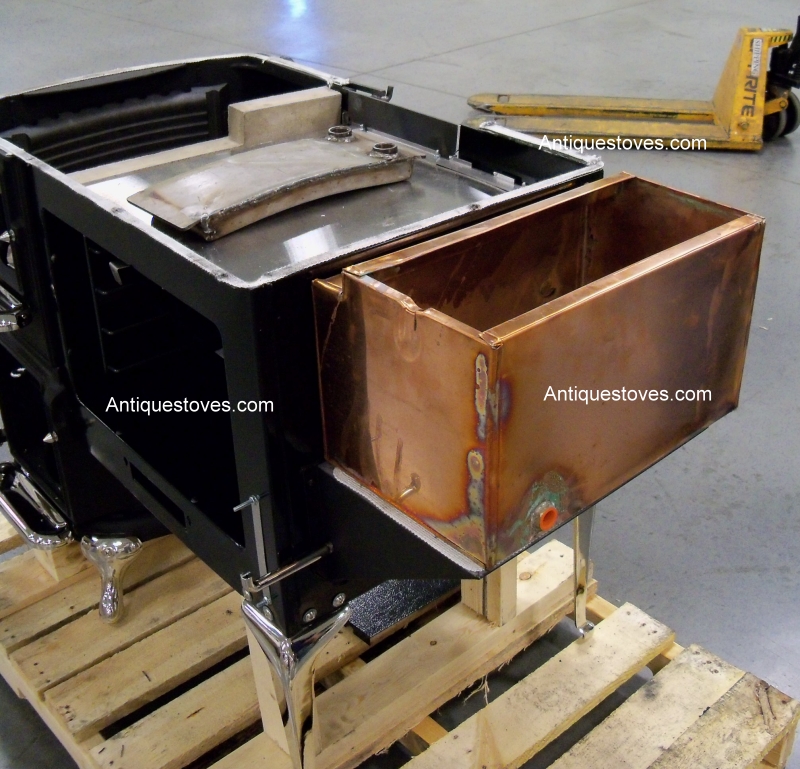

Stainless Water Jacket

Stainless Water Jacket
  Coal/Wood grate for Oval-

Heavy cast iron grates. 60 lb.



Specifications: Model: Oval
Cook top surface: 35¼"W x 25¾"D
Oven size: 11½"H x 18"W x 20"D
Lids: Six - 9¼"
one - 6¼"
Winter firebox: 22"L x 9"W x 15"D
Summer firebox: 22"L x 9"W x 8"D

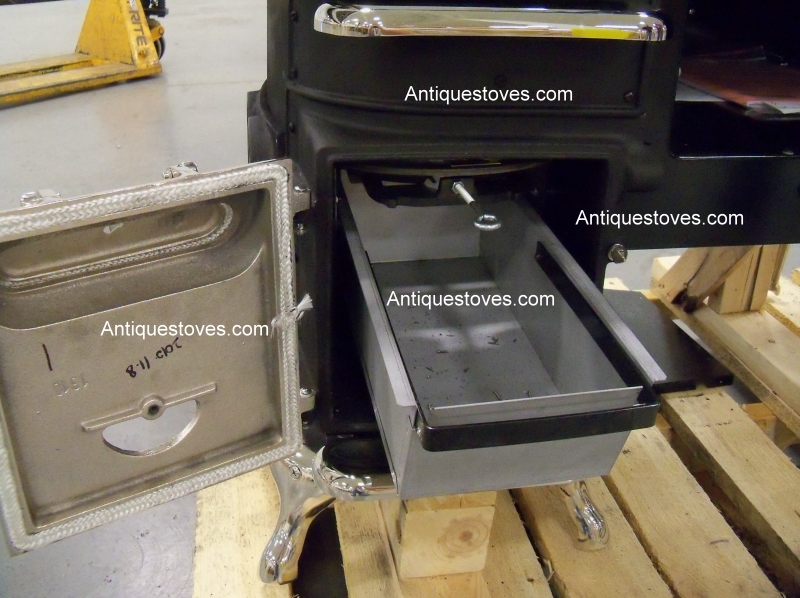

Ash pan size: 18"L x 7½"W x 6"D
Flue size: 6" diameter
Height: Overall - 62"
cook top 32"
Depth: 35"
Width: No Reservoir: 41½"
With Reservoir: 47½"
Weight: No Reservoir: 610 lb
With Reservoir: 640 lb
Clearance: Behind: 27"
Side: 24"

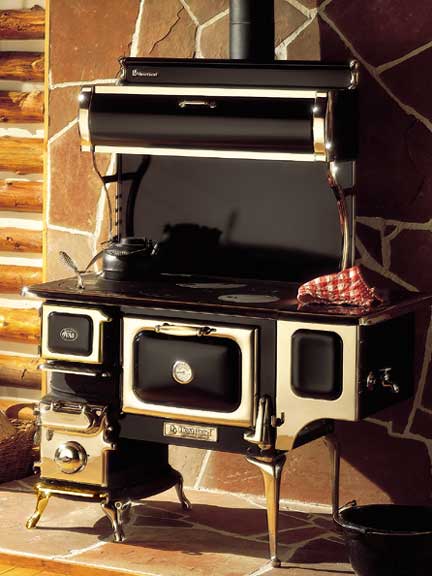

Heartland Oval Wood Cookstove, Ivory



Installation - Users Manual- PDF



1903 Oval Wood Cook Stove Prices and  Options


1903 Oval Wood Cook Stove with Reservoir $7400
1903 Oval Wood Cook Stove $6900
Coal/Wood grate for Oval-

Heavy cast iron grates. 60 lb.

 $519
Optional Rear Heat shield for Oval 42Lb. $250
Fresh Air Kit for Oval Stove-

Allows Stove to bring in fresh outside air for more efficient burning. 10 lb

 $105
Stainless Water Jacket $350



Display unit on Sale



Shipping is additional, usually right to your front door!

We have regional warehouses, so our shipping prices are usually the lowest.

Email your Zip code below  for shipping quote.
